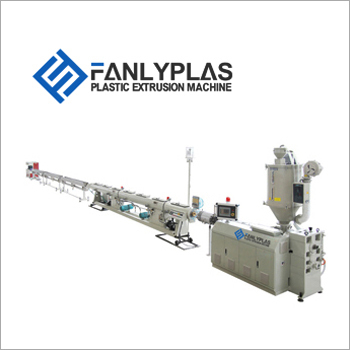

PVC Pipes Extrusion Lines

Get a Price/Quote

MOQ : 1 Set

PVC Pipes Extrusion Lines Specification

Type
Pipe Extrusion Line

Material
PVC

Capacity
150-450 kg/hr

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Direct

Screw Diameter
65 mm / 80 mm / 92 mm (options available)

Power
55-110 kW

Weight (kg)
5500 kg

Dimension (L*W*H)
18000 mm 2000 mm 2500 mm

Color
Sky Blue / Custom

Screw L/D Ratio
22:1

Pipe Diameter Range
16 mm - 315 mm

Application
Production of rigid and flexible PVC pipes for water supply, drainage and electrical conduit

Production Speed
2-30 m/min

Cooling Method
Water cooling

Extruder Type
Conical Twin Screw Extruder

Voltage
380V / 50Hz / 3 Phase

Cutting Method
Automatic Non-chip Cutter / Saw Cutter

Haul-Off Unit
Multi-claw Type

Mould Material
Alloy Steel

PVC Pipes Extrusion Lines Trade Information

Minimum Order Quantity
1 Set

Supply Ability
100 Sets Per Month

Delivery Time
15 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About PVC Pipes Extrusion Lines

Unlock remarkable manufacturing potential with the illustrious Fanlyplas PVC Pipes Extrusion Lines. Advance purchase of this automatic, PLC-controlled Virtuoso system ensures you consistently produce rigid and flexible PVC pipes, ranging from 16 mm to 315 mm in diameter. Harness the power of a conical twin-screw extruder, direct drive, and multi-claw haul-off for outstanding precision, speed (230 m/min), and performance. This line is engineered with durable alloy steel moulds, water cooling, and automatic non-chip or saw cutters for illustrious quality. Try now and elevate your plants productivity with this renowned solution, customizable in color and configuration to fit your exacting application needs.

Versatile PVC Pipe Extrusion for Diverse Applications

Designed for the production of rigid and flexible PVC pipes, this awe-inspiring extrusion line suits water supply, drainage, and electrical conduit requirements. Utilize it for residential, commercial, and industrial projects, making it an illustrious choice for contractors, builders, and infrastructure developers. The plants advanced system, including automatic PLC control and computerized settings, optimizes on-site application, ensuring reliability and elevated operational efficiency for every installation and project environment.

Trusted Market Value and Reliable Order Logistics

Our PVC Pipes Extrusion Lines are handed over through illustrious logistics partners at your chosen FOB port in China, reflecting solid market value globally. Payment terms are flexible, catering to secure transactions and effortless order completion. With organized and punctual processes, delivery time is efficiently managed, ensuring your equipment is ready when your project needs it most. Depend on our professional export service for a seamless, trustworthy experience from initial inquiry to finished installation.

Product details

Brand	Fanlyplas
Material	PVC/WPC compounds
Product thickness	10-80mm
Product width	As per drawings
Output	80-250kg/h
Wood grain coextrusion	Avaiable
Screw Design	Conical Twin screw
Line speed	0.3-4m/mins
Extruder Model	FLZ55/110, FLZ65/132, FLZ80/156, FLZ65/132&FLD35/25, FLZ65/132&FLD45/25
Motor power	22kw,37kw,55kw, 37KW/5.5KW or 7.5KW, 37KW/7.5KW or 11KW
Max profile width	180mm,240mm, 300mm/400mm, 240mm/300mm, 240mm/300mm

FAQs of PVC Pipes Extrusion Lines:

Q: How does the PVC Pipes Extrusion Line optimize the manufacturing process?

A: The PVC Pipes Extrusion Line features a PLC control system, direct-drive conical twin-screw extruder, and automatic non-chip/saw cutter, ensuring remarkable accuracy and minimizing manual intervention. These features result in increased efficiency, consistent quality, and reduced operational downtime for pipe production.

Q: What types and sizes of pipes can be produced with this extrusion line?

A: This line supports the production of both rigid and flexible PVC pipes, with a diameter range from 16 mm to 315 mm and thicknesses between 10 mm and 80 mm. It is ideal for water supply, drainage, and electrical conduit applications across multiple sectors.

Q: When is the typical delivery time after order completion?

A: Once your order is completed and terms are finalized, the standard delivery time is arranged efficiently to align with your projects needs. Specific lead times are provided during the quotation process and depend on current production schedules.

Q: Where can the PVC Pipes Extrusion Line be applied?

A: The extrusion line is suitable for installation in manufacturing plants, construction material facilities, and infrastructure development sites. Its robust design caters to diverse environments, delivering reliable outputs for municipal, industrial, or commercial projects.

Q: What are the main benefits of the conical twin-screw design in this system?

A: The conical twin-screw design offers superior mixing, plasticizing, and throughput capabilities. This configuration enhances material processing, especially for PVC/WPC compounds, delivering greater consistency, better product quality, and versatility in production.

Q: How does the automatic grade setting improve operational use?

A: Being fully automatic with PLC control and computerized monitoring means the system reduces manual operation and increases process reliability, safety, and repeatability, allowing users to focus on production efficiency and minimizing human error.
