WPC Flooring Line

Get a Price/Quote

MOQ : 1 Set

WPC Flooring Line Specification

Production Capacity
600-800 kg/hr

Operating Temperature
0-50C

Frequency
50 Hz

Model No
WPC-FL-2024

Frame Type
Robust Heavy-duty Steel Frame

Motor Power
45 kW

Lubricating System
Automatic lubrication

Features
Stable Operation, High Output, Energy Efficient

Plastic Processed
PVC/WPC

Drive
Servo Motor Driven

Control System
PLC Controlled

Voltage
380 V

Power Rating
85 kW

Accuracy
High Precision +/- 0.1 mm

Machine Type
WPC Flooring Line

Cooling System
Water Cooling

Noise Level
60 dB

Connectivity Options
Industrial Ethernet/PLC interfaces

Product Type
Flooring Line

Technology
Extrusion & Lamination

Power Source
Electricity

Operating Type
Automatic

Power
85 kW

Pressure
10-15 MPa

Surface Treatment
Embossed / Matt Finish

Dimension (L*W*H)
28000 mm x 2500 mm x 2600 mm

Weight (kg)
approx. 17000 kg

Color
Grey & Blue

Usage & Applications
Industrial

WPC Flooring Line Trade Information

Minimum Order Quantity
1 Set

Supply Ability
100 Sets, , Per Month

Delivery Time
15 Days

Main Export Market(s)
South America, Central America, Western Europe, Australia, Eastern Europe, Middle East, Asia, North America, Africa

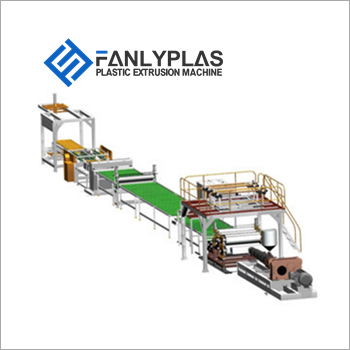

About WPC Flooring Line

Explore the spectacular world of flooring production with the venerable Fanlyplas WPC Flooring Line. This masterpiece integrates Vacuum Auto Loader, chrome-plated rollers, and a four-to-five zone heating system for precision processing. Master high-output operations, reaching 600-800 kg/hr with a stable, energy-efficient extruder. Experience seamless automatic cutting, cyclone dust collection, and digital PID temperature control with touch screen HMI. Easy access maintenance, robust steel frame, and advanced safety features ensure reliable, operator-friendly service. Try nowaccess high-precision WPC flooring solutions built for industrial excellence and enduring performance.

Versatile WPC Flooring Line: Industrial Applications and Key Features

This WPC Flooring Line is used for manufacturing premium-quality WPC and PVC flooring. It is ideal for settings such as factories, warehouses, and commercial complexes. The conical twin screw extruder ensures precise output for material thicknesses between 4-12 mm, with a maximum width of 1220 mm. Enhanced by chrome-plated rollers and automatic feeding, the line features user-friendly PID controls, cyclone dust collection, automatic lubrication, and touch screen HMI for optimized, efficient production.

Delivery, List Price, and Secure Shipping Details for WPC Line

The WPC Flooring Line can be delivered promptly, with reliable supply ability to meet varied order sizes. Secure shipping ensures your investment is protected from factory to final site. Flexible payment terms are available to support your procurement process, and the list price reflects the advanced technology and robust construction of this machine. Customers benefit from on-site installation, training, and dedicated after-sales support, making each delivery a seamless transition to enhanced production capability.

Product details

Brand	Fanlyplas
Material	PVC dry blends
Product thickness	5-20mm
Product width	100-600mm
Output	80kg/h-400kg/h
Layer configuration	Mono layer
Screw Design	Conical Twin Screw
Line speed	2-10m/min
Extruder Model	FLZ48/113, FLZ51/105, FLZ55/120, FLZ65/132, FLZ65/138 high speed, FLZ80/156 high speed
Motor power	15KW,18.5KW, 22kw,37kw, 45KW,55kw

FAQs of WPC Flooring Line:

Q: How does the WPC Flooring Line ensure high-precision output?

A: The WPC Flooring Line employs a high-precision conical twin screw extruder and PLC control system, maintaining an accuracy of +/- 0.1 mm with digital PID temperature control and synchronized drives.

Q: What are the typical application areas for this WPC Flooring Line?

A: This machine is widely used in industrial production environments, particularly for manufacturing flooring in commercial complexes, factories, and large-scale warehouses.

Q: Where is the WPC Flooring Line typically installed?

A: It is installed in industrial settings, with on-site installation and comprehensive training provided to ensure seamless integration and operation within your facility.

Q: What materials can be processed with this machine?

A: The system is designed for PVC/WPC dry blends, supporting material thicknesses from 4 to 12 mm and output widths up to 1220 mm, delivering embossed or matt finished surfaces.

Q: How does the feeding system work in this product line?

A: An advanced vacuum auto loader streamlines material input, ensuring consistent feeding to the extruder and maximizing operational efficiency during production.

Q: What benefits does the integrated dust collector provide?

A: The cyclone dust collector ensures a clean working environment, minimizes airborne particles, and supports easy maintenance with efficient dust extraction during cutting and finishing.

Q: When can I expect delivery after placing an order?

A: Delivery time depends on order size and location, but Fanlyplas is dedicated to timely order fulfillment with secure, safeguarded shipping to your premises.
